| Sichuan Lindo Technology Co., Ltd |
| Sichuan, china |
| $25.26-$50.26/pc 6.08m/pc |
- Color: Black
- Depth: 60 mm
- Side: Single-Side SEG Sign Extrusion
- Wall Thick: 1.4 mm
- Slot Size: 4*14 mm
Fabric Light Box Profile LED Aluminum Alloy Extruded Sign
Description
Basic Information of Fabric Light Box Profile:
Fabric Light Box Profile LED Aluminum Alloy Extruded Sign
- Material: 6063 Alumninum Alloy Profile
- Length: 6.08m / pc
- Color: Black
- Depth: 60 mm
- Side: Single Side Lightbox Extrusion
- Wall Thick: 1.4 mm
- Slot Size: 4*14 mm
- Surface Treament: Anodized
- Application: Silicon Edge Frameless SEG tension fabric light box signage
- Supplier: Sichuan Lindo Technology Co., Ltd (China)
- Shipping: Wordwide shipping. Contacr supplier get more detail information: sales@lindosign.com
An aluminum frame is fabricated to your liking and then the silicone strip on the fabric is inserted into a small groove on the face of the frame. The result? A frameless graphic display with perfect, taut and wall-like tension.
It can be a freestanding display, wall mounted display or a display that can be hung from the ceiling. These displays can be backlit. Add to that, they’re simple to setup and take down.
Fabric Light Box Profile LED Aluminum Alloy Extruded Sign Gallery
How to MakeSilicones Edge Graphics?
- At the first, prepare all the accessories needed: the aluminum profile, corner connector, backboard, power supply, graphic and other tools (screwdriver | screw | tape | gloves).
- Assemble the four-sided profile frame perfectly by 45° angle.
- Use screwdriver to screw fix the inside and outside screws, and so that the whole light box frame is completed
- Place the backboard into the frame, screw it, then setting LED on the board and fix it with glass glue. Install the transformer on the at the outlet line edge.
- Install the fabric panel. the silicone strip that has been installed around the fabric, just insert the silicone strip into the aluminum profile frame. Pull out the strip can remove the graphic.

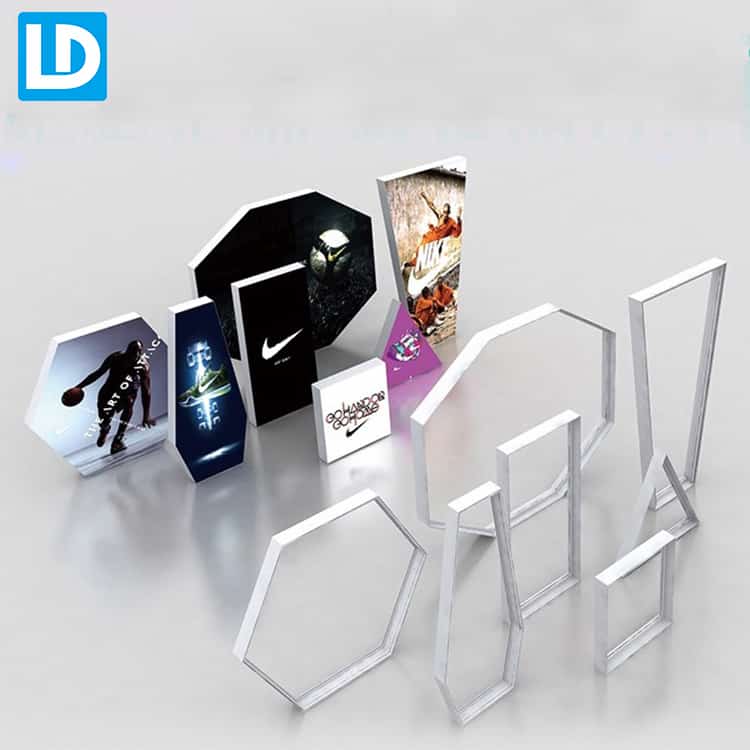

SEG Sign Extrusion Fabric Light Box Frame Application:
-
- Custom Fabric Light Box
-
- Round Shape
-
- Free-Standing (With Wheels)
-
- Wall Mount Advertising Display
Additional information
| Product Name: | Fabric Light Box Profile LED Aluminum Alloy Extruded Sign |
|---|---|
| Customization: | Color, Dimension, Material, Logo |
| Thickness: | Depth: 60mm Walll Thick: 1.4 mm |
| Material: | 6063 Aluminum |
| Light Source: | CE, RoHS or UL Approval led module |
| Application: | SEG Fabric Light Box |
| Sample: | Available |
| Packing Detail: | Bubble bag+Foam+Polywood case |
| Shipping: | By courier, By air, By Ocean, worldwide delivery |
| Warranty: | 1 years |
| Lead Time: | Small order 3-7 working days. |
| Accessories | Included all installation accessories |
